7장. Spring Web Security를 이용한 로그인 처리

728x90

7장. Part07_Spring Web Security를 이용한 로그인 처리

ch30. Spring Web Security 소개

스프링 시큐리티의 기본 동작 방식

서블릿의 여러가지 필터와 인터셉터를 이용하여 처리

필터	인터셉터
서블릿에서 말하는 단순한 필터를 의미	스프링에서 필터와 유사한 역할
스프링과 무관하게 서블릿 자원	스프링의 빈으로 관리되면서 스프링의 컨텍스트 내에 속함
Dispatcher servlet의 앞단에서 정보를 처리	Dispatcher servlet에서 Handler(Controller)로 가기 전에 정보를 처리
J2EE 표준 스펙에 정의 되어 있는 기능	Spring Framework에서 자체적으로 제공하는 기능
인코딩이나 보안 관련 처리와 같은 web app의 전역적으로 처리해야 하는 로직은 필터로 구현	클라이언트에서 들어오는 디테일한 처리(인증, 권한 등)에 대해서는 주로 인터셉터에서 처리
-------

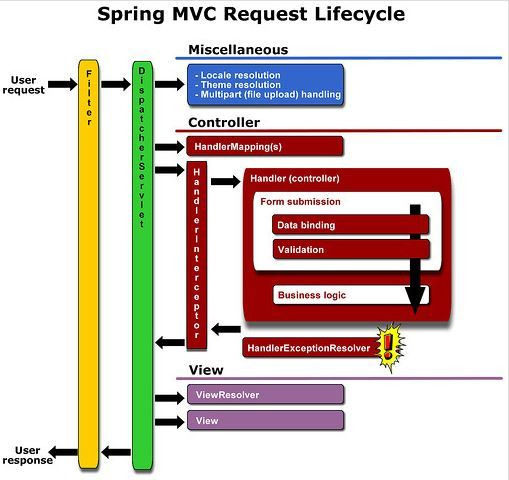

필터와 인터셉터의 차이를 그림으로 표현
출처
- https://goddaehee.tistory.com/154
- https://www.leafcats.com/39

Spring Web Security의 설정

pom.xml

<!-- Security -->
<!-- https://mvnrepository.com/artifact/org.springframework.security/spring-security-core -->
<dependency>
    <groupId>org.springframework.security</groupId>
    <artifactId>spring-security-web</artifactId>
    <version>5.0.6.RELEASE</version>
</dependency>

<dependency>
    <groupId>org.springframework.security</groupId>
    <artifactId>spring-security-config</artifactId>
    <version>5.0.6.RELEASE</version>
</dependency>

<dependency>
    <groupId>org.springframework.security</groupId>
    <artifactId>spring-security-core</artifactId>
    <version>5.0.6.RELEASE</version>
</dependency>

<dependency>
    <groupId>org.springframework.security</groupId>
    <artifactId>spring-security-taglibs</artifactId>
    <version>5.0.6.RELEASE</version>
</dependency>

인증(Authentication)과 권한(Authorization)
- AuthenticationManager(인증 매니저)
  - 스프링 시큐리티에서 가장 중요한 역할을 하는 존재
  - ProviderManager는 인증에 대한 처리를 AuthenticationProvider라는 타입의 객체를 이용해서 처리를 위임함
```
[AuthenticationManager]
          ↑
   [ProviderManager] ←→ [AuthenticationProvider]
```
  - AuthenticationProvider(인증 제공자)는 실제 인증 작업을 진행
  - 이때 인증된 정보에는 권한에 대한 정보를 같이 전달하게 되는데 이 처리는 UserDetailsService 인터페이스에서 사용자의 정보와 사용자가 가진 권한의 정보를 처리해서 반환해줌
```
[AuthenticationManager]
          ↑
   [ProviderManager] ←→ [AuthenticationProvider] ⇠⇢ [UserDetailsService]
```
  - 개발자가 스프링 시큐리티를 커스터마이징 하는 방식은 크게 AuthenticationProvider를 직접 구현하는 방식과 실제 처리를 담당하는 UserDetailsService를 구현하는 방식으로 나누어짐
  - 대부분의 겨우 UserDetailsService를 구현하는 형태를 사용하는 것 만으로도 충분하지만, 새로운 프로토콜이나 인증 구현 방식을 직접 구현하는 경우에는 AuthenticationProvider 인터페이스를 직접 구현해서 사용함

ch31. 로그인과 로그아웃 처리

security-context.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:security="http://www.springframework.org/schema/security"
    xsi:schemaLocation="http://www.springframework.org/schema/security http://www.springframework.org/schema/security/spring-security.xsd
        http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">

    <security:http>
    <!-- 모든 사용자 접근 가능 -->
        <security:intercept-url pattern="/sample/all" access="permitAll" />

    <!-- ROLE_MEMBER 유저만 접근 가능 -->
        <security:intercept-url pattern="/sample/member" access="hasRole('ROLE_MEMBER')" />

    <!-- ROLE_ADMIN 유저만 접근 가능 -->
    <security:intercept-url pattern="/sample/admin" access="hasRole('ROLE_ADMIN')" />

        <security:form-login/>

    <!-- 권한이 없을 경우 accessError 페이지로 이동 -->
    <security:access-denied-handler error-page="/accessError" />

    </security:http>

    <security:authentication-manager>
        <security:authentication-provider>
            <security:user-service>
                <!-- 스프링 시큐리티 5버젼부터는 반드시 PasswordEncoder라는 존재를 이용하도록 변경됨. 인코딩 처리 없이 사용하고 싶다면 패스워드 앞에 {noop}를 붙여줘야 -->
                <security:user name="member" password="{noop}member" authorities="ROLE_MEMBER" />
        <security:user name="admin" password="{noop}admin" authorities="ROLE_ADMIN" />
            </security:user-service>
        </security:authentication-provider>
    </security:authentication-manager>

</beans>

all.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
    <h1>/sample/all page</h1>
</body>
</html>

member.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
    <h1>/sample/member page</h1>
</body>
</html>

admin.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
    <h1>/sample/admin page</h1>
</body>
</html>

accessError.jsp
- <security:access-denied-handler error-page="/accessError" /> 통해 접근하는 경우 uri는 변화가 없음

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
<%@ taglib uri="http://www.springframework.org/security/tags" prefix="sec" %>
<%@ page import="java.util.*" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; UTF-8">
<title>Insert title here</title>
</head>
<body>
    <h1>Access Denied Page</h1>
    <h2><c:out value="${SPRING_SECURITY_403_EXCEPTION.getMessage()}"/></h2>
    <h2><c:out value="${msg}"/></h2>
</body>
</html>

AccessDeniedHandler 인터페이스를 구현하는 경우
- 접근 제한이 된 경우에 다양한 처리를 하고 싶다면 직접 AccessDeniedHandler 인터페이스를 구현하는 편이 좋음
- 예를 들어 접근 제한이 되었을 때 쿠키나 세션에 특정한 작업을 하거나 HttpServletResponse에 특정한 헤더 정보를 추가하는 등의 행위를 할 경우에는 직접 구현하는 방식이 더 권장됨
AccessDeniedHandler.java

package org.zerock.security;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.security.access.AccessDeniedException;
import org.springframework.security.web.access.AccessDeniedHandler;

import lombok.extern.log4j.Log4j;

@Log4j
public class CustomAccessDeniedHandler implements AccessDeniedHandler {
    @Override
    public void handle(HttpServletRequest request, HttpServletResponse response, AccessDeniedException accessException) throws IOException, ServletException{
        log.error("Access Denied Handler");

        log.error("Redirect....");

        response.sendRedirect("/accessError");
    }
}

security-context.xml
- 접근제어 시 uri가 /accessError로 변경됨

<bean id="customAccessDenied" class="org.zerock.security.CustomAccessDeniedHandler"></bean>

    <security:http>
        <security:intercept-url pattern="/sample/all" access="permitAll" />
        <security:intercept-url pattern="/sample/member" access="hasRole('ROLE_MEMBER')" />
        <security:intercept-url pattern="/sample/admin" access="hasRole('ROLE_ADMIN')" />
        <security:form-login/>

        <!-- <security:access-denied-handler error-page="/accessError" /> -->
        <security:access-denied-handler ref="customAccessDenied" />
    </security:http>

커스텀 로그인 페이지

security-context.xml

<security:intercept-url pattern="/sample/all" access="permitAll"/>
<!-- <security:form-login/> -->
<security:form-login login-page="/customLogin"/>

CommonController.java

@GetMapping("/customLogin")
  public void loginInput(String error, String logout, Model model) {
      log.info("error : " + error);
      log.info("logout : " + logout);

      if(error != null) {
          model.addAttribute("error", "Login Error Check Your Account");
      }

      if(logout != null) {
          model.addAttribute("logout", "LogOut!!");
      }
  }

customLogin.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
  pageEncoding="UTF-8"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>

<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>

  <h1>Custom Login Page</h1>
  <h2>
    <c:out value="${error}" />
  </h2>
  <h2>
    <c:out value="${logout}" />
  </h2>

  <form method='post' action="/login">

    <div>
      <input type='text' name='username' value='admin'>
    </div>
    <div>
      <input type='password' name='password' value='admin'>
    </div>

    <div>
      <input type='submit'>
    </div>
    <input type="hidden" name="${_csrf.parameterName}" value="${_csrf.token}" />
  </form>

</body>
</html>

_csrf 토큰
- 개발자도구를 통해 확인해 보면 값이 생성된다

<input type="hidden" name="${_csrf.parameterName}" value="${_csrf.token}" />

CSRF(Cross-site request forgery) 공격과 토큰
- 스프링 시큐리티에서 POST 방식을 이용하는 경우 기본적으로 CSRF 토큰이라는 것을 이용
- 별도의 설정이 없다면 POST 방식에는 CSRF 토큰이 사용되는데 '사이트간 위조 방지'를 목적으로 특정한 값의 토큰을 사용하는 방식

로그인 성공과 AuthenticationSuccessHandler

로그인 성공시 계정에 따라 이동할 페이지 설정

CustomLoginSuccessHandler.java

package org.zerock.security;

import java.io.IOException;
import java.util.ArrayList;
import java.util.List;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.security.core.Authentication;
import org.springframework.security.web.authentication.AuthenticationSuccessHandler;

import lombok.extern.log4j.Log4j;

@Log4j
public class CustomLoginSuccessHandler implements AuthenticationSuccessHandler {
  @Override
  public void onAuthenticationSuccess(HttpServletRequest request, HttpServletResponse response, Authentication auth) throws IOException, ServletException{
    log.warn("Login Success");

    List<String> roleNames = new ArrayList<>();

    auth.getAuthorities().forEach(authority -> {
      roleNames.add(authority.getAuthority());
    });

    log.warn("ROLE NAMES : " + roleNames);

    if(roleNames.contains("ROLE_ADMIN")) {
      response.sendRedirect("/sample/admin");
      return;
    }

    if(roleNames.contains("ROLE_MEMBER")) {
      response.sendRedirect("/sample/member");
    }

    response.sendRedirect("/");
  }
}

security-context.xml

<bean id="customLoginSuccess" class="org.zerock.security.CustomLoginSuccessHandler"></bean>

<security:http>
    <security:intercept-url pattern="/sample/all" access="permitAll" />
    <security:intercept-url pattern="/sample/member" access="hasRole('ROLE_MEMBER')" />
    <security:intercept-url pattern="/sample/admin" access="hasRole('ROLE_ADMIN')" />

    <security:intercept-url pattern="/sample/all" access="permitAll"/>
    <!-- <security:form-login/> -->
    <!-- <security:form-login login-page="/customLogin"/> -->
    <security:form-login login-page="/customLogin" authentication-success-handler-ref="customLoginSuccess"/>

    <!-- <security:access-denied-handler error-page="/accessError" /> -->
    <security:access-denied-handler ref="customAccessDenied" />

    <security:logout logout-url="/customLogout" invalidate-session="true" />

</security:http>
```

로그아웃의 처리와 LogoutSuccessHandler

security-context.xml

<security:logout logout-url="/customLogout" invalidate-session="true" />

-CommonController.java

@GetMapping("/customLogout")
  public void logoutGet() {
      log.info("custom logout");
  }

customLogout.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
  pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
  <h1>Logout Page</h1>
  <form action="/customLogout" method="post">
    <input type="hidden" name="${_csrf.parameterName}" value="${_csrf.token}" />
    <button>로그아웃</button>
  </form>
</body>
</html>

admin.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
  pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
  <h1>/sample/admin page</h1>
  <a href="/customLogout">Logout</a>
</body>
</html>

ch32. JDBC를 이용하는 간편 인증/권한 처리

유저, 권한 샘플 테이블 생성

create table users(
    username varchar2(50) not null primary key,
    password varchar2(50) not null,
    enabled char(1) default '1');

create table authorities (
username varchar2(50) not null,
authority varchar2(50) not null,
constraint fk_authorities_users foreign key(username) references users(username));

create unique index ix_auth_username on authorities (username,authority);

insert into users (username, password) values ('user00','pw00');
insert into users (username, password) values ('member00','pw00');
insert into users (username, password) values ('admin00','pw00');

insert into authorities (username, authority) values ('user00','ROLE_USER');
insert into authorities (username, authority) values ('member00','ROLE_MANAGER');
insert into authorities (username, authority) values ('admin00','ROLE_MANAGER');
insert into authorities (username, authority) values ('admin00','ROLE_ADMIN');
commit;

select * from users;

select * from authorities order by authority;


- security-context.xml

```xml
<security:authentication-manager>
  <security:authentication-provider>
    <!-- <security:user-service>     -->
      <!-- 스프링 시큐리티 5버젼부터는 반드시 PasswordEncoder라는 존재를 이용하도록 변경됨. 인코딩 처리 없이 사용하고 싶다면 패스워드 앞에 {noop}를 붙여줘야 -->
    <!--     <security:user name="member" password="{noop}member" authorities="ROLE_MEMBER" />
      <security:user name="admin" password="{noop}admin" authorities="ROLE_ADMIN" />
    </security:user-service> -->

    <!-- 실제 JDBC를 이용 -->
    <security:jdbc-user-service data-source-ref="dataSource" />

  </security:authentication-provider>
</security:authentication-manager>

※ 로그인 시도할 경우 PasswordEncoder를 지정하지 않았기 때문에 에러 발생 (스프링 시큐리티 5부터는 기본적으로 PasswordEncoder를 지정해야함!)

암호화 없이 사용하는 방법이 있지만 쓸일이 거의 없을 것 같으므로 생략.
- 만약 생기면 책 참고 p.647

PasswordEncoder 문제해결

인증/권한을 위한 테이블 설계

create table tbl_member(
  userid varchar2(50) not null primary key,
  userpw varchar2(100) not null,
  username varchar2(100) not null,
  regdate date default sysdate,
  updatedate date default sysdate,
  enabled char(1) default '1');

create table tbl_member_auth (
userid varchar2(50) not null,
auth varchar2(50) not null,
constraint fk_member_auth foreign key(userid) references tbl_member(userid)
);


  - BCryptPasswordEncoder 클래스를 이용한 패스워드 보호
    - security-context.xml

    ```xml
    <bean id="bcryptPasswordEncoder" class="org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder"></bean>

    <security:authentication-manager>
      <security:authentication-provider>
        <!-- <security:user-service>     -->
          <!-- 스프링 시큐리티 5버젼부터는 반드시 PasswordEncoder라는 존재를 이용하도록 변경됨. 인코딩 처리 없이 사용하고 싶다면 패스워드 앞에 {noop}를 붙여줘야 -->
        <!--     <security:user name="member" password="{noop}member" authorities="ROLE_MEMBER" />
          <security:user name="admin" password="{noop}admin" authorities="ROLE_ADMIN" />
        </security:user-service> -->

        <!-- 실제 JDBC를 이용 -->
        <security:jdbc-user-service data-source-ref="dataSource" />

        <!-- BCryptPasswordEncoder -->
        <security:password-encoder ref="bcryptPasswordEncoder" />

      </security:authentication-provider>
    </security:authentication-manager>
    ```

    - pom.xml

    ```xml
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-test</artifactId>
        <version>${org.springframework-version}</version>
    </dependency>
    ```

    - MemberTests.java
      - 임시 멤버/권한 추가

    ```java
    package org.zerock.security;

    import java.sql.Connection;
    import java.sql.PreparedStatement;

    import javax.sql.DataSource;

    import org.springframework.beans.factory.annotation.Autowired;

    import org.junit.Test;
    import org.junit.runner.RunWith;
    import org.springframework.security.crypto.password.PasswordEncoder;
    import org.springframework.test.context.ContextConfiguration;
    import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

    import lombok.Setter;
    import lombok.extern.log4j.Log4j;

    @RunWith(SpringJUnit4ClassRunner.class)
    @ContextConfiguration({"file:src/main/webapp/WEB-INF/spring/root-context.xml", "file:src/main/webapp/WEB-INF/spring/security-context.xml"})
    @Log4j
    public class MemberTests {
      @Setter(onMethod_ = @Autowired)
      private PasswordEncoder pwencoder;

      @Setter(onMethod_ = @Autowired)
      private DataSource ds;

      @Test
      public void testInsertMember() {
        String sql = "insert into tbl_member(userid, userpw, username) values(?,?,?)";

        for(int i=0; i<100; i++) {
          Connection con = null;
          PreparedStatement pstmt = null;

          try {
            con = ds.getConnection();
            pstmt = con.prepareStatement(sql);

            pstmt.setString(2, pwencoder.encode("pw" + i));

            if(i<80) {
              pstmt.setString(1, "user" + i);
              pstmt.setString(3, "일반사용자" + i);
            }else if(i < 90) {
              pstmt.setString(1, "manager" + i);
              pstmt.setString(3, "운영자" + i);
            }else {
              pstmt.setString(1, "admin" + i);
              pstmt.setString(3, "관리자" + i);
            }

            pstmt.executeUpdate();
          }catch(Exception e) {
            e.printStackTrace();
          }finally {
            if(pstmt != null) {try {pstmt.close();}catch(Exception e) {}}
            if(con != null) {try {con.close();}catch(Exception e) {}}
          }
        }
      }

      @Test
      public void testInsertAuth() {
        String sql = "insert into tbl_member_auth(userid, auth) values(?,?)";

        for(int i=0; i<100; i++) {
          Connection con = null;
          PreparedStatement pstmt = null;

          try {
            con = ds.getConnection();
            pstmt = con.prepareStatement(sql);

            if(i<80) {
              pstmt.setString(1, "user" + i);
              pstmt.setString(2, "ROLE_USER");
            }else if(i < 90) {
              pstmt.setString(1, "manager" + i);
              pstmt.setString(2, "ROLE_MEMBER");
            }else {
              pstmt.setString(1, "admin" + i);
              pstmt.setString(2, "ROLE_ADMIN");
            }

            pstmt.executeUpdate();
          }catch(Exception e) {
            e.printStackTrace();
          }finally {
            if(pstmt != null) {try {pstmt.close();}catch(Exception e) {}}
            if(con != null) {try {con.close();}catch(Exception e) {}}
          }
        }
      }
    }
    ```

    - security-context.xml
      - SpringSecurity에서 지정된 테이블이 아닌 테이블 구조를 이용하는 경우
        - users-by-username-query : 유저
        - authorities-by-username-query : 권한

    ```xml
    <!-- 실제 JDBC를 이용 -->
    <!-- <security:jdbc-user-service data-source-ref="dataSource" />     -->
    <security:jdbc-user-service data-source-ref="dataSource"
    users-by-username-query="select userid, userpw, enabled from tbl_member where userid = ?"
    authorities-by-username-query="select userid, auth from tbl_member_auth where userid = ?"/>
    ```
 --------
> ## ch33. 커스텀 UserDetailsService 활용
- JDBC 방식으로 처리하는 방식은 제한적인 내용만을 이용한다는 단점이 존재함
- 스프링 시큐리티에서 username이라고 부르는 사용자의 정보만을 이용하기 때문에 실제 프로젝트에서 사용자의 이름이나 이메일 등의 자세한 정보를 이용할 경우에는 충분치 못함
- 이러한 문제를 해결하기 위해 UserDetailsService를 구현하는 방식을 이용하는 것이 좋음. 흔히 커스텀 UserDetailsService라고 부르며, 이를 이용하면 원하는 객체를 인증과 권한 체크에 활용할 수 있음
- 스프링 시큐리티의 UserDetailsService 인터페이스는 단 하나의 메서드(loadUserByUsername())만이 존재
- 가장 일반적으로 사용되는 방법은 하위 클래스들 중에서 org.springframework.security.core.userdetails.User 클래스를 상속하는 형태
- MyBatis를 이용하는 MemberMapper와 서비스를 짝성하고 이를 시큐리티와 연결해서 사용하는 방식으로 예제를 진행
-----
- AuthVO.java

```java
package org.zerock.domain;

import lombok.Data;

@Data
public class AuthVO {
    private String userid;
    private String auth;
}

MemberVO.java

package org.zerock.domain;

import java.util.Date;
import java.util.List;

import lombok.Data;

@Data
public class MemberVO {
    private String userid;
    private String userpw;
    private String userName;
    private boolean enabled;

    private Date regDate;
    private Date updateDate;
    private List<AuthVO> authList;
}

MemberMapper.java

package org.zerock.mapper;

import org.zerock.domain.MemberVO;

public interface MemberMapper {
    public MemberVO read(String userid);
}

MemberMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org/DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="org.zerock.mapper.MemberMapper">

    <resultMap type="org.zerock.domain.MemberVO" id="memberMap">
        <id property="userid" column="userid" />
        <result property="userid" column="userid" />
        <result property="userpw" column="userpw" />
        <result property="userName" column="userName" />
        <result property="regDate" column="regDate" />
        <result property="updateDate" column="updateDate" />
        <collection property="authList" resultMap="authMap" />
    </resultMap>

    <resultMap type="org.zerock.domain.AuthVO" id="authMap">
        <result property="userid" column="userid" />
        <result property="auth" column="auth" />
    </resultMap>

    <select id="read" resultMap="memberMap">
        select mem.userid, userpw, username, enabled, regdate, updatedate, auth
        from tbl_member mem LEFT OUTER JOIN tbl_member_auth auth on mem.userid = auth.userid
        where mem.userid = #{userid}
    </select>

</mapper>

MemberMapperTests.java

package org.zerock.mapper;

import org.springframework.beans.factory.annotation.Autowired;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringRunner;
import org.zerock.domain.MemberVO;
import org.zerock.mapper.MemberMapper;

import lombok.Setter;
import lombok.extern.log4j.Log4j;

@RunWith(SpringRunner.class)
@ContextConfiguration({"file:src/main/webapp/WEB-INF/spring/root-context.xml"})
@Log4j
public class MemberMapperTests {
    @Setter(onMethod_ = @Autowired)
    private MemberMapper mapper;

    @Test
    public void testRead() {
        MemberVO vo = mapper.read("admin90");

        log.info(vo);

        vo.getAuthList().forEach(authVO -> log.info(authVO));
    }
}

CustomUserDetailsService 구성

CustomUserDetailsService.java

package org.zerock.security;

import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.zerock.mapper.MemberMapper;
import org.springframework.beans.factory.annotation.Autowired;

import lombok.Setter;
import lombok.extern.log4j.Log4j;

@Log4j
public class CustomUserDetailsService implements UserDetailsService{
  @Setter(onMethod_ = @Autowired)
  private MemberMapper memberMapper;

  @Override
  public UserDetails loadUserByUsername(String userName) throws UsernameNotFoundException{
    log.warn("Load User By UserName : " + userName);

    return null;
  }
}

security-context.xml

<bean id="customUserDetailsService" class="org.zerock.security.CustomUserDetailsService"></bean>

<security:authentication-manager>
      <!-- <security:authentication-provider>
          <security:jdbc-user-service data-source-ref="dataSource"
          users-by-username-query="select userid, userpw, enabled from tbl_member where userid = ?"
          authorities-by-username-query="select userid, auth from tbl_member_auth where userid = ?"/>

          BCryptPasswordEncoder
          <security:password-encoder ref="bcryptPasswordEncoder" />

      </security:authentication-provider> -->

      <security:authentication-provider user-service-ref="customUserDetailsService">

          <!-- BCryptPasswordEncoder -->
          <security:password-encoder ref="bcryptPasswordEncoder" />

      </security:authentication-provider>

  </security:authentication-manager>

MemberVO를 UsersDetails 타입으로 변환

스프링 시큐리티의 UserDetailsService는 loadUserByUsername() 라는 하나의 추상 메서드만이 존재
리턴 타입은 org.springframework.security.core.userdetails.UserDetails
org.springframework.security.core.userdetails.User 클래스를 상속받은 CustomUser 클래스 생성
MemberVO를 직접 수정하는 방법도 있지만 확장하는 방식을 사용

[UserDatails]
      ⇡
   [User]
      ↑
⌜⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⎺⌝
                          ⌈[AuthVO]
  CustomUser ← [MemberVO]-|[AuthVO]
                          ⌊[AuthVO]
⌞⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⎽⌟

MemberMapper.java

package org.zerock.mapper;

import org.zerock.domain.MemberVO;

public interface MemberMapper {
  public MemberVO read(String userid);
}

MemberMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org/DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="org.zerock.mapper.MemberMapper">

  <resultMap type="org.zerock.domain.MemberVO" id="memberMap">
    <id property="userid" column="userid" />
    <result property="userid" column="userid" />
    <result property="userpw" column="userpw" />
    <result property="userName" column="userName" />
    <result property="regDate" column="regDate" />
    <result property="updateDate" column="updateDate" />
    <collection property="authList" resultMap="authMap" />
  </resultMap>

  <resultMap type="org.zerock.domain.AuthVO" id="authMap">
    <result property="userid" column="userid" />
    <result property="auth" column="auth" />
  </resultMap>

  <select id="read" resultMap="memberMap">
    select mem.userid, userpw, username, enabled, regdate, updatedate, auth
    from tbl_member mem LEFT OUTER JOIN tbl_member_auth auth on mem.userid = auth.userid
    where mem.userid = #{userid}
  </select>

</mapper>

CustomUserDetailsService.java

package org.zerock.security;

import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.zerock.domain.MemberVO;
import org.zerock.mapper.MemberMapper;
import org.zerock.security.domain.CustomUser;
import org.springframework.beans.factory.annotation.Autowired;

import lombok.Setter;
import lombok.extern.log4j.Log4j;

@Log4j
public class CustomUserDetailsService implements UserDetailsService{
  @Setter(onMethod_ = @Autowired)
  private MemberMapper memberMapper;

  @Override
  public UserDetails loadUserByUsername(String userName) throws UsernameNotFoundException{
    log.warn("Load User By UserName : " + userName);

    MemberVO vo = memberMapper.read(userName);

    log.warn("queried by member mapper: " + vo);

    return vo == null ? null : new CustomUser(vo);
  }
}

CustomUser.java

package org.zerock.security.domain;

import java.util.Collection;
import java.util.stream.Collectors;

import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.User;
import org.zerock.domain.MemberVO;

import lombok.Getter;

@Getter
public class CustomUser extends User {
  private static final long serialVersionUID = 1L;

  private MemberVO member;

  public CustomUser(String username, String password, Collection<? extends GrantedAuthority> authorities) {
    super(username, password, authorities);
  }

  public CustomUser(MemberVO vo) {
    super(vo.getUserid(), vo.getUserpw(), vo.getAuthList().stream().map(auth -> new SimpleGrantedAuthority(auth.getAuth())).collect(Collectors.toList()));

    this.member = vo;
  }
}

ch34. 스프링 시큐리티를 JSP에서 사용하기

JSP에서 로그인한 사용자 정보 보여주기

admin.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
  pageEncoding="UTF-8"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
<%@ taglib uri="http://www.springframework.org/security/tags" prefix="sec" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
  <h1>/sample/admin page</h1>

  <p>principal : <sec:authentication property="principal"/></p>
  <p>MemberVO : <sec:authentication property="principal.member"/></p>
  <p>사용자이름 : <sec:authentication property="principal.member.userName"/></p>
  <p>사용자아이디 : <sec:authentication property="principal.username"/></p>
  <p>사용자 권한 리스트 : <sec:authentication property="principal.member.authList"/></p>

  <a href="/customLogout">Logout</a>
</body>
</html>

표현식을 이용하는 동적 화면 구성

JSP 또는 security-context.xml에서 사용 가능

표현식	설명
hasRole([role]) hasAuthority([authority])	해당 권한이 있으면 true
hasAnyRole([role,role2]) hasAnyAuthority([authority])	여러 권한들 중에서 하나라도 해당되는 권한이 있으면 true
principal	현재 사용자 정보를 의미
permitAll	모든 사용자에게 허용
denyAll	모든 사용자에게 거부
isAnonymous()	익명의 사용자의 경우(로그인을 하지 않은 경우도 해당)
isAuthenticated()	인증된 사용자면 true
isFullyAuthenticated()	Remember-me로 인증된 것이 아닌 인증된 사용자인 경우 true

all.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
<%@ taglib uri="http://www.springframework.org/security/tags" prefix="sec" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
  <h1>/sample/all page</h1>

  <sec:authorize access="isAnoymous()">
    <a href="/customLogin">로그인</a>
  </sec:authorize>

  <sec:authorize access="isAuthenticated()">
    <a href="/customLogout">로그아웃</a>
  </sec:authorize>
</body>
</html>

ch35. 자동 로그인(remember-me)

자동 로그인 기능을 처리하는 방식 중에서 가장 많이 사용되는 방식은 로그인 되었던 정보를 데이터베이스에 저장해 두었다가 사용자가 재방문 시 세션에 정보가 없으면 데이터베이스를 조회하는 방식
데이터베이스에 정보가 공유되기 때문에 좀 더 안정적인 운영이 가능함

스프링 시큐리티의 공식 문서에 나오는 로그인 정보를 유지하는 테이블

create table persistent_logins(
username varchar2(64) not null,
series varchar2(64) primary key,
token varchar2(64) not null,
last_used timestamp not null
);

security-context.xml

<security:http>

  <security:remember-me data-source-ref="dataSource" token-validity-seconds="604800" />

</security:http>

customLogin.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>

<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>

    <h1>Custom Login Page</h1>
    <h2>
        <c:out value="${error}" />
    </h2>
    <h2>
        <c:out value="${logout}" />
    </h2>

    <form method='post' action="/login">

        <div>
            <input type='text' name='username' value='admin'>
        </div>
        <div>
            <input type='password' name='password' value='admin'>
        </div>
        <div>
            <input type="checkbox" name="remember-me"> Remember Me
        </div>

        <div>
            <input type='submit'>
        </div>
        <input type="hidden" name="${_csrf.parameterName}" value="${_csrf.token}" />
    </form>

</body>
</html>

로그아웃 시 쿠키 삭제

security-context.xml

<security:http>

    <!-- JSESSION_ID는 Tomcat에서 발행하는 쿠키의 이름 -->
    <security:logout logout-url="/customLogout" invalidate-session="true" delete-cookies="remember-me, JSESSION_ID"/>

    <security:remember-me data-source-ref="dataSource" token-validity-seconds="604800" />

</security:http>

ch37.어노테이션을 이용하는 스프링 시큐리티 설정

주로 사용되는 어노테이션
- @Secured
  - 스프링 시큐리티 초기부터 사용되었고, () 안에 'ROLE_ADMIN'과 같은 문자열 혹은 문자열 배열을 이용
- @PreAuthorize, @PostAuthorize
  - 3버전부터 지원되며, () 안에 표현식을 사용할 수 있으므로 최근에는 더 많이 사용됨

SampleContorller.java

@PreAuthorize("hasAnyRole('ROLE_ADMIN', 'ROLE_MEMBER')")
@GetMapping("/annoMember")
public void doMember2() {
  log.info("logined annotation member");
}

@Secured({"ROLE_ADMIN"})
@GetMapping("/annoAdmin")
public void doAdmin2() {
  log.info("admin annotation only");
}

servlet-context.xml
spring-security.xsd 버전을 4.2버전으로 낮추거나 버전 정보를 지워야 에러가 없이 작동됨

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns="http://www.springframework.org/schema/mvc"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:beans="http://www.springframework.org/schema/beans"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:security="http://www.springframework.org/schema/security"
    xsi:schemaLocation="http://www.springframework.org/schema/security http://www.springframework.org/schema/security/spring-security.xsd
        http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd
        http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd">

    <!-- DispatcherServlet Context: defines this servlet's request-processing infrastructure -->

    <!-- Enables the Spring MVC @Controller programming model -->
    <annotation-driven />

    <!-- Handles HTTP GET requests for /resources/** by efficiently serving up static resources in the ${webappRoot}/resources directory -->
    <resources mapping="/resources/**" location="/resources/" />

    <!-- Resolves views selected for rendering by @Controllers to .jsp resources in the /WEB-INF/views directory -->
    <beans:bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <beans:property name="prefix" value="/WEB-INF/views/" />
        <beans:property name="suffix" value=".jsp" />
    </beans:bean>

    <context:component-scan base-package="org.zerock.controller" />

    <security:global-method-security pre-post-annotations="enabled" secured-annotations="enabled"/>

    <beans:bean id="multipartResolver" class="org.springframework.web.multipart.support.StandardServletMultipartResolver"></beans:bean>

</beans:beans>
